PVQ10, PVQ13, PVQ16, PVQ20, PVQ25, PVQ32, PVQ40, PVQ45, PVQ63
Серия с переменным уровнем шума для промышленного использования
Рабочий объем: 10,5-45,1 см3/об
Скорость: 180 об/мин
Максимальное давление: 186-210 бар

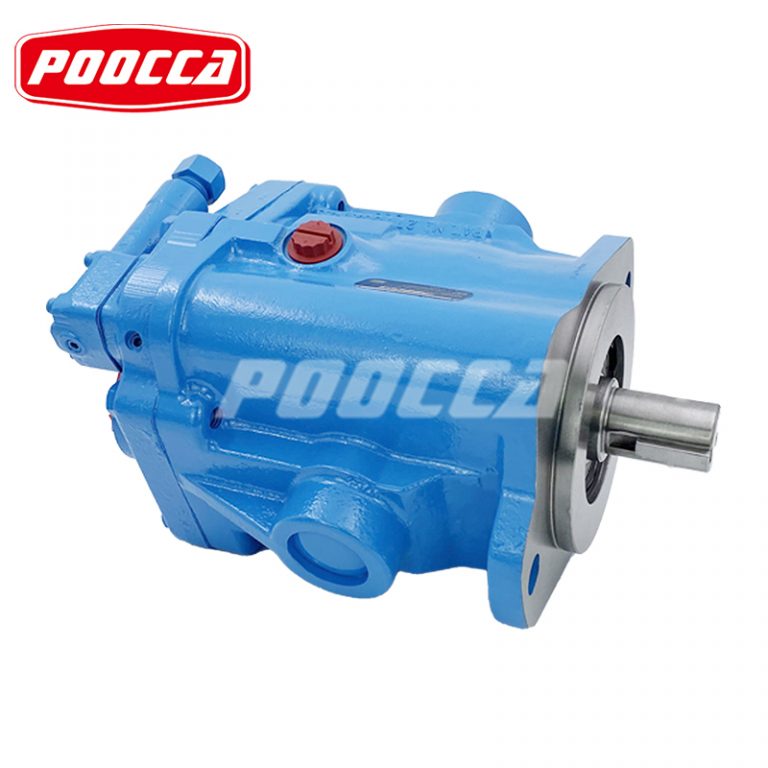

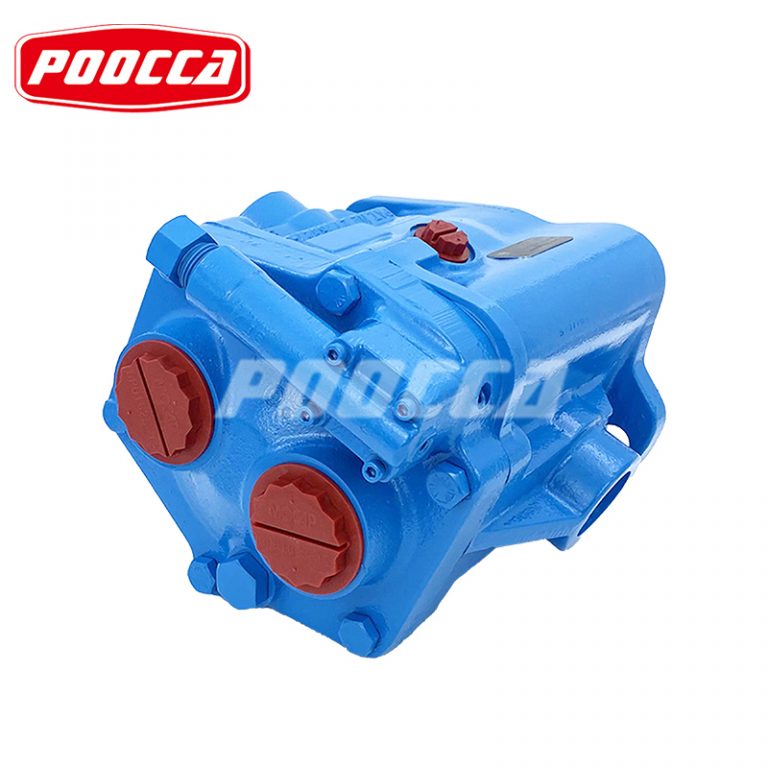

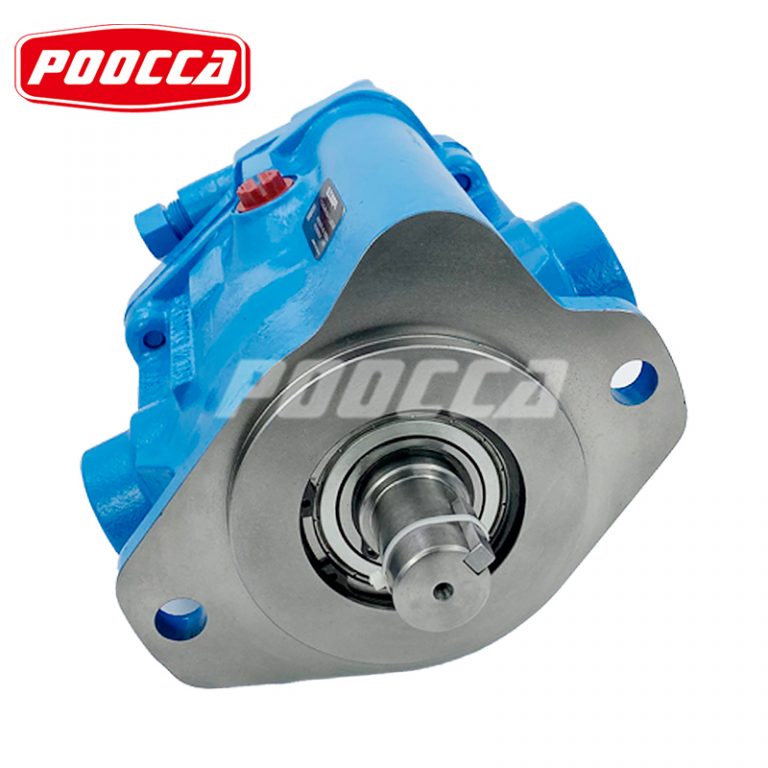

vickers pvq variable piston pump is a straight-axis variable pump with 9 specifications, which relies on pressure to control variables. A variety of control options are available, providing maximum working flexibility. Or flow compensator PVQ piston pump operates with very low noise and can meet today’s demanding industrial conditions. The noise level of each pump is close to or lower than that of the motor driving the pump. The noise is reduced by a patented timing configuration that also results in very small pressure “pulsations” in the output flow. This allows the noise in systems using PVQ plunger pumps to be reduced as well.
PVQ series plunger pumps can operate with many types of hydraulic fluids. In addition to typical petroleum-based hydraulic oils and synthetic hydraulic oils, it can also be adapted to aqueous hydraulic fluids and phosphatidic acid hydraulic fluids. Many PVQ piston pumps have through-shaft drive solutions to adapt to multi-pump applications and installation needs. The through-shaft drive pump can be equipped with various types of fixed pumps and variable displacement pumps of different specifications, forming a compact and flexible assembly. Such an assembly is less expensive to set up because the size of the unit is reduced and only a single mount on the prime mover is required. The low-noise PVQ piston pumps have excellent operating characteristics, and a wide range of control methods and installation styles allow the most suitable model to be selected for any application.
| Model Series | Maximum Geometric Displacement cm3/r (in3/r) |
Rated Speed r/min |
Maximum Pressure bar (psi) |
| PVQ10 | 10,5 (0.643) | 1800 | 210 (3000) |
| PVQ13 | 13,8 (0.843) | 1800 | 140 (2000) |
| PVQ16 | 16,0 (0.976) | 1800 | 210 (3000) |
| PVQ20 | 21,1 (1.290) | 1800 | 210 (3000) |
| PVQ25 | 25,2 (1.540) | 1800 | 210 (3000) |
| PVQ32 | 32,9 (2.010) | 1800 | 140 (2000) |
| PVQ40 | 41,0 (2.500) | 1800 | 210 (3000) |
| PVQ45 | 45,1 (2.750) | 1800 | 186 (2700) |
| PVQ63 | 63,0 (3.844) | 1800 | 210 (3000) |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997 and has four companies in Hong Kong, Guangdong, Jiangsu, and Zhejiang. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts. With our rich experience in providing power transmission and drive solutions to global hydraulic system users
Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
POOCCA’s facilities include 2,000 square meters of office space. Our factory covers an area of more than 8,000 square meters, with a dedicated production area of 6,000 square meters.
We have invested in the most advanced manufacturing equipment, including flexible machining centers, CNC gear grinders, coordinate measuring machines, automatic gear inspection systems, CAT fully computer-controlled testing machines, etc. These advanced tools enable us to offer a wide range of hydraulic products suitable for construction, agriculture, bending machinery, shearing machinery, injection molding machinery as well as metallurgy, petroleum and material handling fields.
With our well-equipped facilities and highly skilled workforce, we are able to cater to the needs of various industries and provide tailor-made hydraulic solutions to our valued clients.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products
At POOCCAHydraulics, we take great pride in our commitment to quality and safety, and our multiple certifications reflect our commitment to delivering products that meet the highest industry standards. We have obtained a number of utility model patents, ISO certification, FCC certification, CE certification, RoHS certification and other certificates.
The utility model patent reflects POOCCA’s continued innovation and commitment to developing unique, efficient hydraulic solutions. ISO certification ensures that POOCCA’s products and services adhere to strict quality management standards, ensuring consistency and reliability. FCC, CE and RoHS certifications underscore POOCCA’s commitment to environmental responsibility and compliance with global safety and environmental regulations.
vickers pvq variable piston pump is a straight-axis variable pump with 9 specifications, which relies on pressure to control variables. A variety of control options are available, providing maximum working flexibility. Or flow compensator PVQ piston pump operates with very low noise and can meet today’s demanding industrial conditions. The noise level of each pump is close to or lower than that of the motor driving the pump. The noise is reduced by a patented timing configuration that also results in very small pressure “pulsations” in the output flow. This allows the noise in systems using PVQ plunger pumps to be reduced as well.
PVQ series plunger pumps can operate with many types of hydraulic fluids. In addition to typical petroleum-based hydraulic oils and synthetic hydraulic oils, it can also be adapted to aqueous hydraulic fluids and phosphatidic acid hydraulic fluids. Many PVQ piston pumps have through-shaft drive solutions to adapt to multi-pump applications and installation needs. The through-shaft drive pump can be equipped with various types of fixed pumps and variable displacement pumps of different specifications, forming a compact and flexible assembly. Such an assembly is less expensive to set up because the size of the unit is reduced and only a single mount on the prime mover is required. The low-noise PVQ piston pumps have excellent operating characteristics, and a wide range of control methods and installation styles allow the most suitable model to be selected for any application.
| Model Series | Maximum Geometric Displacement cm3/r (in3/r) |
Rated Speed r/min |
Maximum Pressure bar (psi) |
| PVQ10 | 10,5 (0.643) | 1800 | 210 (3000) |
| PVQ13 | 13,8 (0.843) | 1800 | 140 (2000) |
| PVQ16 | 16,0 (0.976) | 1800 | 210 (3000) |
| PVQ20 | 21,1 (1.290) | 1800 | 210 (3000) |
| PVQ25 | 25,2 (1.540) | 1800 | 210 (3000) |
| PVQ32 | 32,9 (2.010) | 1800 | 140 (2000) |
| PVQ40 | 41,0 (2.500) | 1800 | 210 (3000) |
| PVQ45 | 45,1 (2.750) | 1800 | 186 (2700) |
| PVQ63 | 63,0 (3.844) | 1800 | 210 (3000) |
POOCCA Hydraulic (Shenzhen) Co., Ltd. was established in 1997 and has four companies in Hong Kong, Guangdong, Jiangsu, and Zhejiang. We are a comprehensive hydraulic service company specializing in the research and development, manufacturing, maintenance and sales of hydraulic products, pumps, motors, valves and related parts. With our rich experience in providing power transmission and drive solutions to global hydraulic system users
Our annual export volume is up to US$16 million and exported to more than 100 countries. We have established long-term and stable cooperative relationships with dealers in more than 75 countries including the United States, Indonesia, Mexico, Thailand, Russia, and Brazil.
POOCCA’s facilities include 2,000 square meters of office space. Our factory covers an area of more than 8,000 square meters, with a dedicated production area of 6,000 square meters.
We have invested in the most advanced manufacturing equipment, including flexible machining centers, CNC gear grinders, coordinate measuring machines, automatic gear inspection systems, CAT fully computer-controlled testing machines, etc. These advanced tools enable us to offer a wide range of hydraulic products suitable for construction, agriculture, bending machinery, shearing machinery, injection molding machinery as well as metallurgy, petroleum and material handling fields.
With our well-equipped facilities and highly skilled workforce, we are able to cater to the needs of various industries and provide tailor-made hydraulic solutions to our valued clients.
Cooperated brands include Rexroth, Parker, Shimadzu, Vickers, Danfoss, Marzocchi, Yuken, Casappa and other brand hydraulic products
At POOCCAHydraulics, we take great pride in our commitment to quality and safety, and our multiple certifications reflect our commitment to delivering products that meet the highest industry standards. We have obtained a number of utility model patents, ISO certification, FCC certification, CE certification, RoHS certification and other certificates.
The utility model patent reflects POOCCA’s continued innovation and commitment to developing unique, efficient hydraulic solutions. ISO certification ensures that POOCCA’s products and services adhere to strict quality management standards, ensuring consistency and reliability. FCC, CE and RoHS certifications underscore POOCCA’s commitment to environmental responsibility and compliance with global safety and environmental regulations.
POOCCA Hydraulics – это комплексное предприятие, объединяющее исследования и разработки, производство, продажи и техническое обслуживание. Ее основная продукция включает шестеренчатые насосы, плунжерные насосы, лопастные насосы, двигатели, гидравлические клапаны и другую продукцию, которая экспортируется более чем в 120 стран. Его качество, цена и сервис пользуются глубоким признанием и доверием клиентов.
